Compressor Pedals and You

While it sounds pretty simple and is widely used by guitarists and bassists alike, compression is an effect that is easily misunderstood. Most people know or think they need it, but don’t always know why. Being primarily a utility effect — used to keep signal dynamics under control — compression isn’t really perceived as an effect like an overdrive or modulation pedal would be. A properly dialed compression pedal won’t necessarily turn heads, but it will keep the pesky peaks and valleys in your signal from turning them.

If you boil down the essence of compression, it’s basically just a constant, automatic volume control. If a signal becomes too loud, the compressor brings it down to a set level. If the signal becomes too quiet, the compressor automatically turns it back up to the set level. These alterations in signal level happen quickly, and if the compressor is set properly, the tone will be very transparent and the automatic volume changes will sound completely natural.

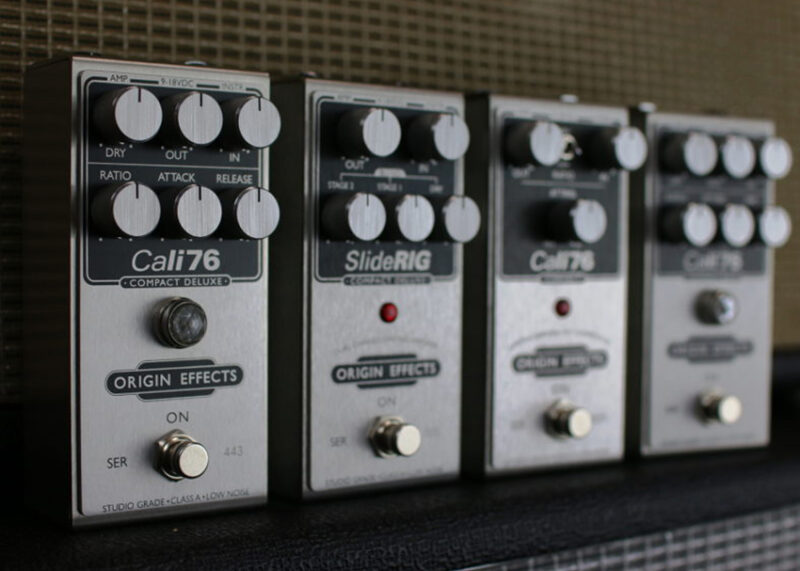

Origin Effects Cali76 Compact Deluxe

Compressor Parameters

In order to properly dial in your compressor, you’ll need to know the general parameters that all the knobs and switches are controlling:

Threshold

Threshold is the general term given to the highest level that you would want your signal to reach. Any peaks that are above this level will be turned down by the compressor, while signals that are lower than the threshold won’t be affected by the compressor.

Boss CS-3

Ratio

Ratio refers to the amount of compression that will be used on the signal peaks that rise above the threshold. Most compression effects refer to ratio in numeric form, i.e. 4:1, etc. A 4:1 ratio setting would mean that any signal that reaches 4dB above the set threshold would be lowered to 1dB above the threshold.

Attack

Since the main function of the compressor is to quickly turn your signal up and down, many pedals let you control the speed of those adjustments. Adjusting the attack setting changes how quickly the compressor attenuates the signal after it crosses the threshold.

MXR Dyna Comp Deluxe

Release

Essentially the opposite of attack, release refers to the speed at which the compressor turns the signal back up to its original volume after falling below the threshold.

Xotic SP Compressor

Output / Gain

With so much volume adjustment and attenuation, compressors sometimes need a little help to bring the signal back up. Most compression pedals feature an output or gain level control that can be turned up to offset any gain reduction in your signal chain.

Related:
A Guide to Studio Compressors

Compressor Types

While most compression pedals share a similar control layout, they aren’t all identical. There are a few different types of compressors that can be useful in different situations, or depending on the flavor of compression you’re looking for. The types of compression that you’ll generally encounter in pedal format are VCA, FET and Optical.

Fender The Bends

VCA

Most commonly found in guitar pedals, VCA is short for Voltage Controlled Amplifier and refers to a type of gain control that converts AC guitar signals to DC voltage. The converted voltage then communicates with the VCA telling it when the signal needs to be adjusted. Their extended range of attack and release times make VCA compressors ideal for guitar pedal applications because they can be adjusted to sound like a variety of compressor types.

JHS Whitey Tighty

FET

Field Effect Transistor compression is probably what comes to mind when most people think about compressors. Immortalized in the iconic Universal Audio 1176 compressor, FET compression is a studio standby that utilizes extremely fast attack times to produce the “slap” or “smack” of a studio recording. Generally, a compression pedal that claims to have “studio-style compression” is employing the FET style.

Walrus Audio Deep Six V3

Optical

Optical compression uses light-sensitive resistors to adjust signal levels, resulting in an extremely smooth, natural-sounding compression. With very slow attack and release times, optical compression can be the most transparent of the compressor types and is perfect for lightly evening out chords and single note patterns without adding any overt compression sound to your signal.

Bogner Lyndhurst

While a compressor isn’t exactly the most exciting effect to add to your pedalboard, it can be an extremely valuable tool for guitarists and bassists looking to add a professional touch to their tone.

Jun 25, 2019Dan
5 years ago Guitar Workbench
Dan

I'm a touring musician who daylights as a Product Merchandiser and Copywriter for all things guitar at zZounds. When I'm not working in Chicago or riding around in a van, you can find me tinkering with gear, hanging out with my dog, or retreating to the woods of my native Michigan.
